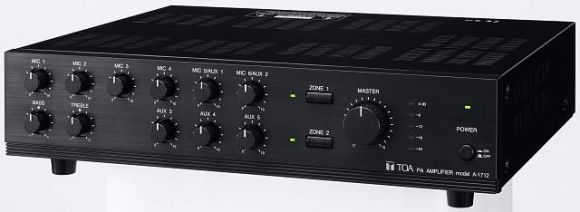

Mixer Power Amplifier ยี่ห้อ TOA รุ่น A-1712 ขนาด 120 Watt
ข้อมูลสินค้า
- TOA
- A-1712
- สินค้าใหม่
- 31 คน
- 12,000.00 ฿
- 3 ก.ค. 2555 13:36:46
- 3 พ.ย. 2553 02:21:53
จำนวน
รายละเอียดสินค้า
ต้องการขาย Mixing power amplifiers 120WของTOA"ของใหม่100%" ติดต่อ พรเทพ 022512637 ราคา12000.-
SPEC TOA A-1712 (120W)
Power Source AC mains 50/60Hz)
Output 120W
Power Consumption 258W (rated output), 105W (EN60065)
Frequency Response 50 - 20,000Hz ±3dB
Distortion Under 2% at 1kHz, rated power
Input MIC 1 - 6: -60dB*, 600?, electronically-balanced, combined type of XLR-3-31 equivalent and phone jack
AUX 1 - 2: -20dB*, 600?, electronically-AUX 1 - 2: -20dB*, 600?, electronically-balanced, combined type of XLR-3-31 equivalent and phone jack
(Either MIC 5 or AUX 1, and either MIC 6 or AUX 2 selectable)
AUX 3 - 4: -20dB*, 10k?, unbalanced, RCA pin jack
AUX 5: -20dB*, 10k?, unbalanced, combined type of XLR-3-31 equivalent and phone jack
PWR AMP IN: 0dB*, 600?, unbalanced, RCApin jack
An equalizer or other signal processor
connectable between LINE OUT and PWR AMP IN terminals)
Output REC: 0dB*, 600?, unbalanced, RCA pin jack
LINE: 0dB*, 600?, unbalanced, RCA pin jack
SPEAKER SELECTOR: 2 zone, high impedance
(100V line/83?), individual selector key, M4 screw terminal
DIRECT SPEAKER OUT:
High impedance (100V line/83?),M4 screw terminal
Low impedance (4 - 16?), M4 screw terminal
(Both Low and High impedance terminals cannot be used at the same time.)
Phantom Power ON or OFF for each MIC 1 - 6 with switch setting
S/N ratio
(Band Pass: 20 - 20,000Hz) Over 100dB
(Master volume: min)
Over 76dB (Master volume: max)
Over 60dB (MIC 1 - 4))
Over 53dB (MIC 5, 6)
Over 76dB (AUX 1 - 5)
Tone Control Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz
Control Input REMOTE VOLUME: M3
screw terminal
POWER REMOTE: No-voltage make contact
input, open voltage: 24V DC (when the unit's power is OFF), short-circuit: under 10mA, M3screw terminal
Weight 12.6kg
Accessory Power cord x 1,
Terminal block cover x 1,
Terminal block cover mounting screw x 2
Option Rack mounting bracket: MB-25B,
Volume control cover: YA-920.
